FF 5950 4 SLOT SWCH
HPE FF 5950 4-slot. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Switching capacity: 3.2 Gbit/s. Power over Ethernet (PoE)

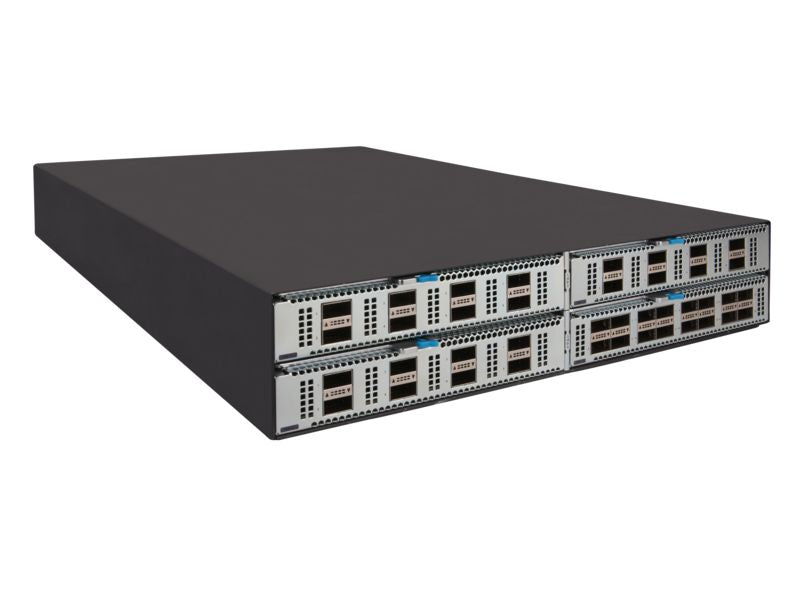

The HPE FlexFabric 5950 Switch Series provides advanced features and high performance in a top-of-rack, data center switch architecture. Consisting of a 1U 32-port 100GbE QSFP28 switch, a fixed-port 48-port 25GbE SFP28 switch and a 4-slot chassis, the 5950 brings high density to a small footprint. While 10-unit IRF reduces management complexities by up to 88%, it also delivers <50 msec convergence time. You can rely on the FlexFabric 5950 Switch Series to improve switch utilization and lower TCO, while delivering business resilience and high availability.
High-Density, Advanced, Data Center Switches with HPE FlexFabric Network Analytics

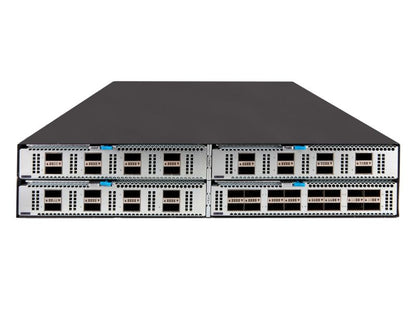

The HPE FlexFabric 5950 Switch Series is a top-of-rack data center switch offering three form factor configurations: a 1RU 32-port 100GbE QSFP28, a 1RU 48-port 25GbE SFP28 with 8-port 100GbE QSFP28, or a 2RU 4-slot chassis for increased flexibility.
Each switch delivers 100GbE ports which may be split into four 25GbE ports or they can support 40GbE which can be split into four by 10GbE for a total of 128 25/10GbE ports.
The HPE 5950 Switch Series includes HPE FlexFabric Network Analytics which in conjunction with the HPE IMC Virtual Application Networking Fabric Manager delivers real time visibility of microburst network congestion which negatively impacts overall network operations and performance.
High-Performance Data Center Switching
The HPE FlexFabric 5950 Switch Series delivers up to 3.2 Tbps switching capacity for the most demanding applications.
It supports up to 3169 Mpps throughput for data-intensive environments.
Low latency, under a 1µs 100GbE latency, gives your business agility.
VXLAN support for network virtualization and overlay solutions for improved flexibility. Includes Open vSwitch Database (OVSDB) for dynamic VXLAN tunnel management.
Business Agility and Resilience with Comware 7
The HPE FlexFabric 5950 Switch Series delivers IRF with less than 50 msec convergence time enabling faster application response time.
IRF-based In Service Software Update (ISSU) enables high-availability updates occurring in the background without disrupting traffic.
Simplicity and Lower TCO
The HPE FlexFabric 5950 Switch Series simplifies switch management by up to 88% with 10-unit Intelligent Resilient Fabric (IRF).
No extra hidden cost with one license per switch for all OS features.
All switch ports are active and ready to use without need for activation licenses.
Automate tedious tasks with a Software-defined Network (SDN) and reclaim wasted resources.
|Configuring Location Settings (CLI)
|Ports & interfaces|
|SFP module slots quantity
|Basic switching RJ-45 Ethernet ports type
||Gigabit Ethernet (10/100/1000)
|Packet buffer memory
|Latency (10 Gbps)
|Power consumption (max)
|AC input voltage
||90 - 264 V
|Power supply included
|Power over Ethernet (PoE)|
|Power over Ethernet (PoE)
|Weight & dimensions|
|Harmonized System (HS) code
