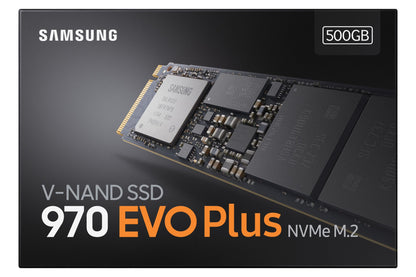

Samsung 970 EVO Plus M.2 500 GB PCI Express 3.0 V-NAND MLC NVMe

500GB, M.2, PCIe Gen 3.0 x 4, NVMe 1.3

---

Samsung 970 EVO Plus. SSD capacity: 500 GB, SSD form factor: M.2, Read speed: 3500 MB/s, Write speed: 3300 MB/s, Component for: PC

Always Evolving SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimisation. It maximises the potential of NVMe bandwidth for unbeatable computing in capacities up to 2TB, with reliability of up to 1,200 TBW.

Level Up Performance
The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53%‡ faster than the 970 EVO. The latest V-NAND—which brings greater NAND performance and higher power efficiency—along with optimised firmware, a proven Phoenix controller and Intelligent TurboWrite boost.

Design Flexibility
The next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung’s innovative technology empowers you with the capacity to do more and accomplish more.


Unparalleled Reliability
Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimise performance drops.

Samsung Magician
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health, check speed and even boost performance.

Warranty: 5-Year Limited Warrantyor 300 TBW Limited Warranty

---

Features
Harmonized System (HS) code	84717070
Mean time between failures (MTBF)	1500000 h
S.M.A.R.T. support	Yes
TRIM support	Yes
DevSlp (device sleep) support	Yes
PCI Express interface data lanes	x4
Controller type	Samsung Phoenix
Random write (4KB)	550000 IOPS
Random read (4KB)	480000 IOPS
Write speed	3300 MB/s
Read speed	3500 MB/s
Security algorithms	256-bit AES
Hardware encryption	Yes
Component for	PC
NVMe version	1.3
NVMe	Yes
Memory type	V-NAND MLC
Interface	PCI Express 3.0
SSD capacity	500 GB
SSD form factor	M.2

Power
Power consumption (idle)	0.003 W
Power consumption (average)	5.8 W
Power consumption (max)	9 W
Operating voltage	3.3 V

Operational conditions
Operating temperature (T-T)	0 - 70 °C

Weight & dimensions
Weight	8 g
Height	22.1 mm
Depth	2.38 mm
Width	80.2 mm

Packaging data
Package type	Box
Bundled software	Magician Software for SSD management

Other features
Launch date	1/22/2019
