5 year Next Business Day Onsite Hardware Support for Workstations

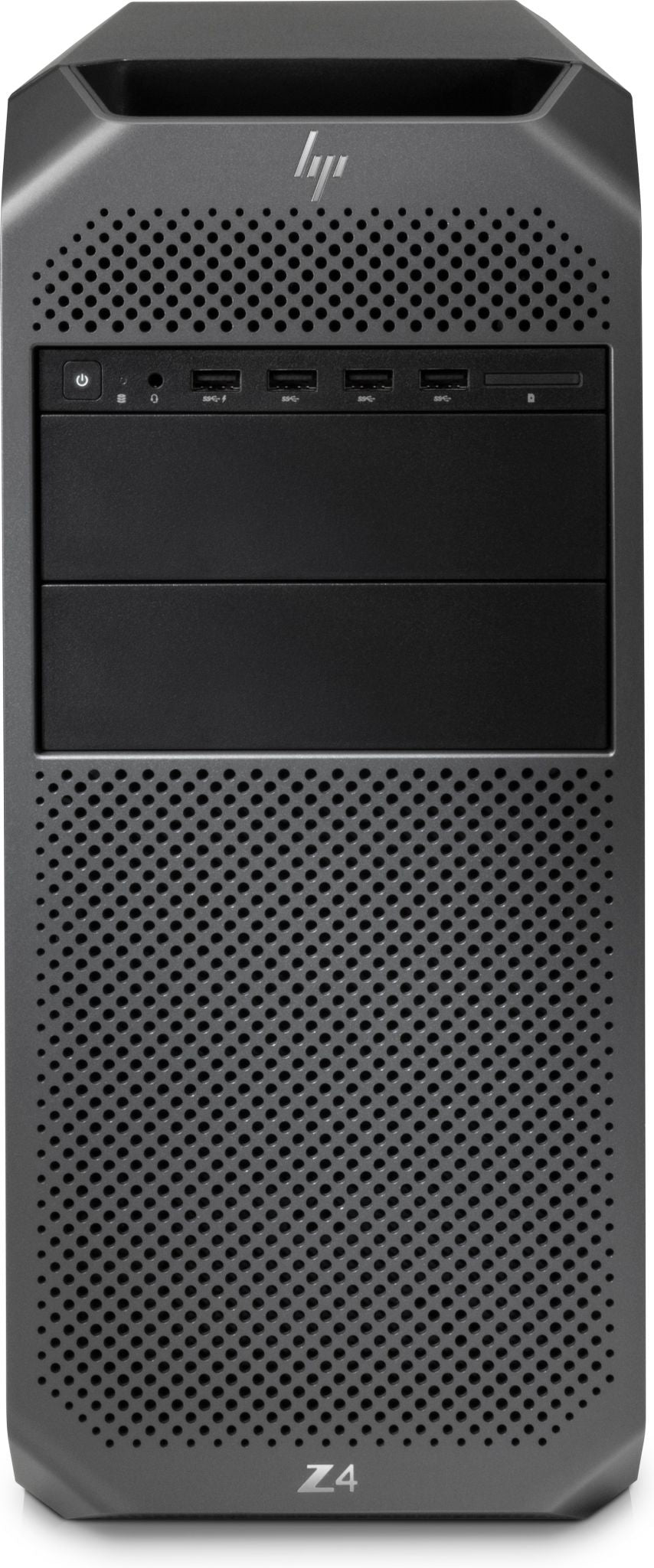

HP Z4 G4. Processor frequency: 3.9 GHz, Processor family: Intel Xeon W, Processor model: W-2245. Internal memory: 32 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 2933 MHz. Total storage capacity: 512 GB, Storage media: SSD, Optical drive type: DVD±RW. Discrete graphics card model: NVIDIA Quadro RTX 4000. Operating system installed: Windows 10 Pro for Workstations, Operating system architecture: 64-bit. Power supply: 1000 W. Chassis type: Tower. Product type: Workstation

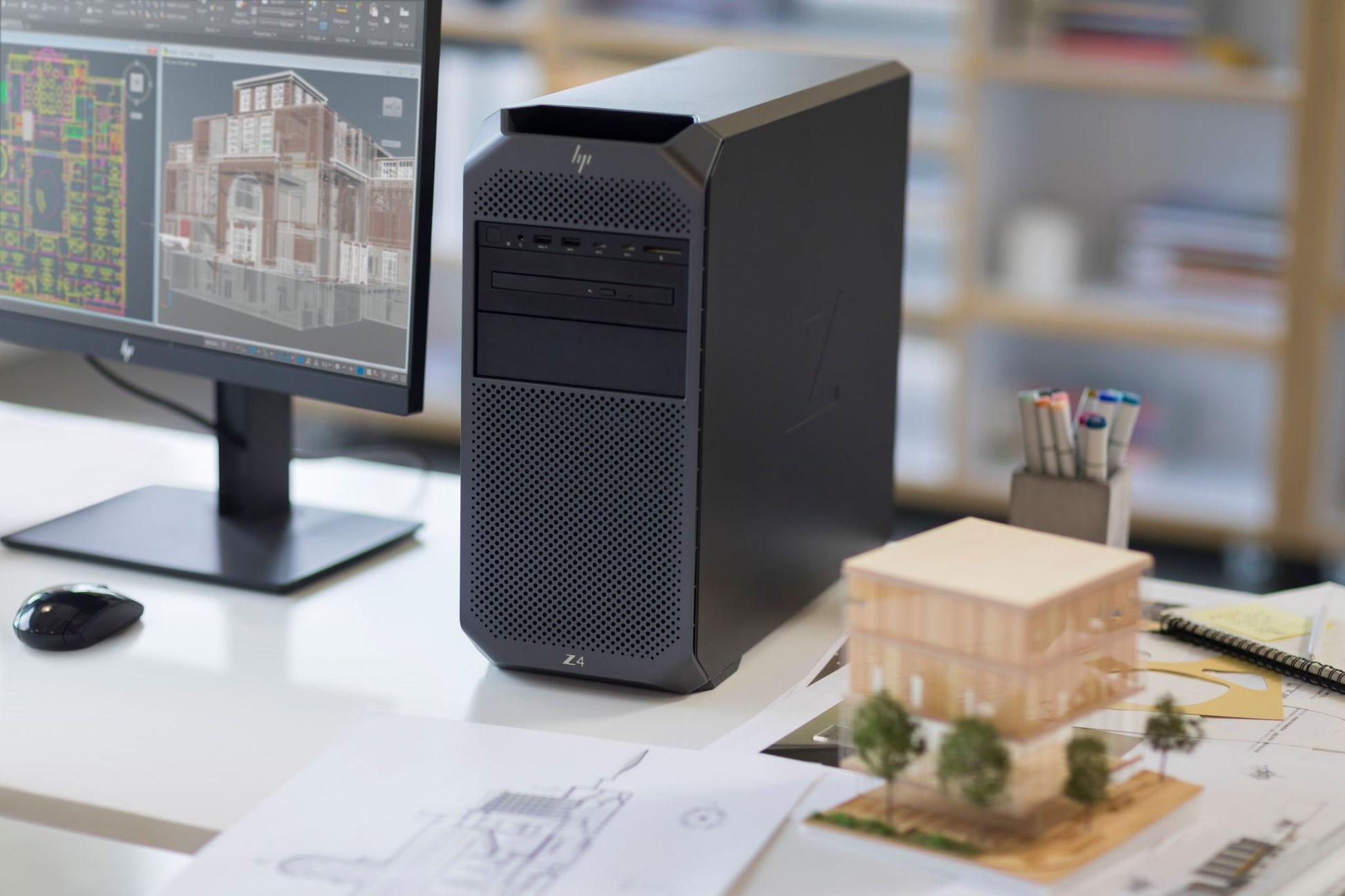

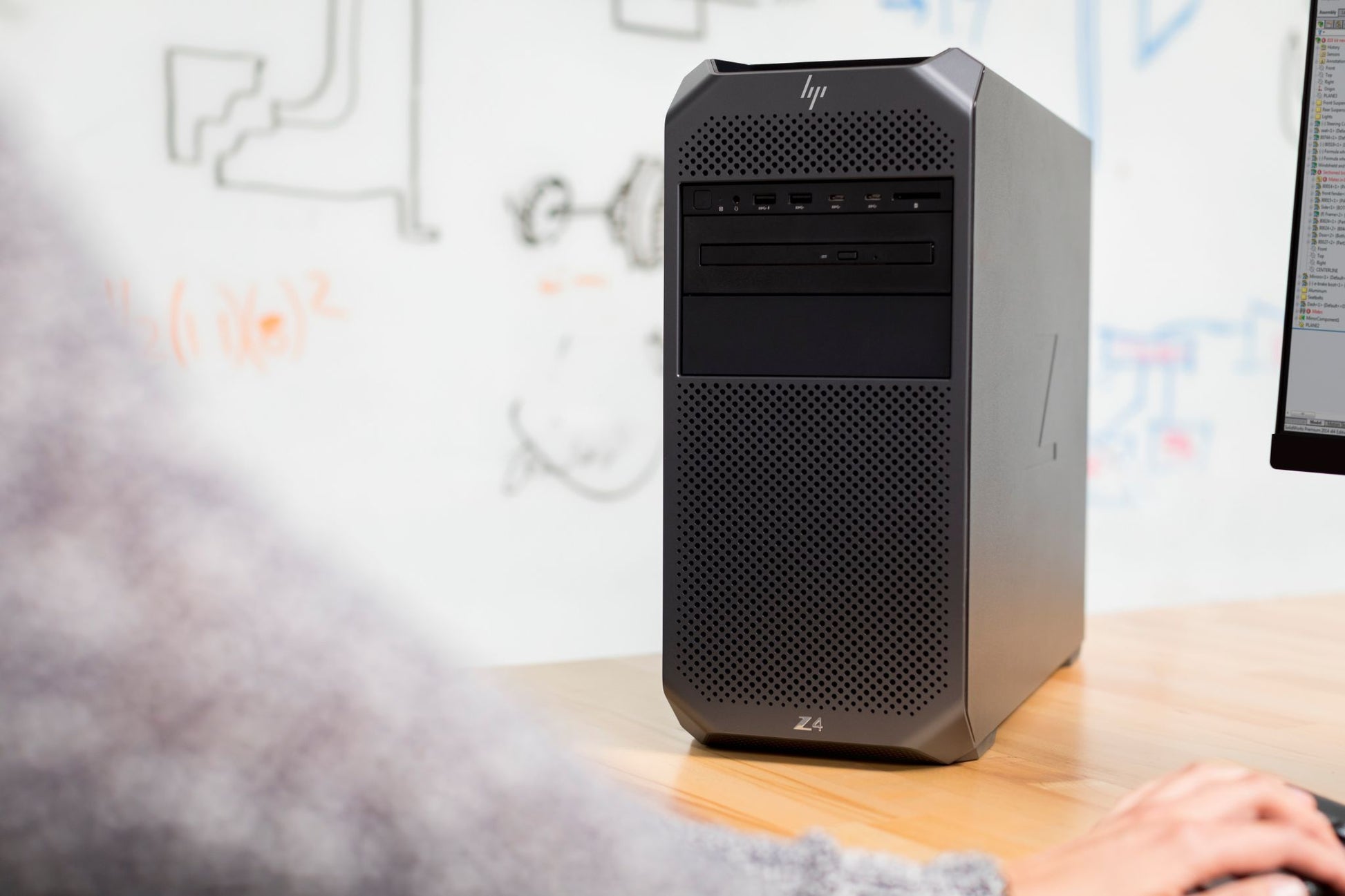

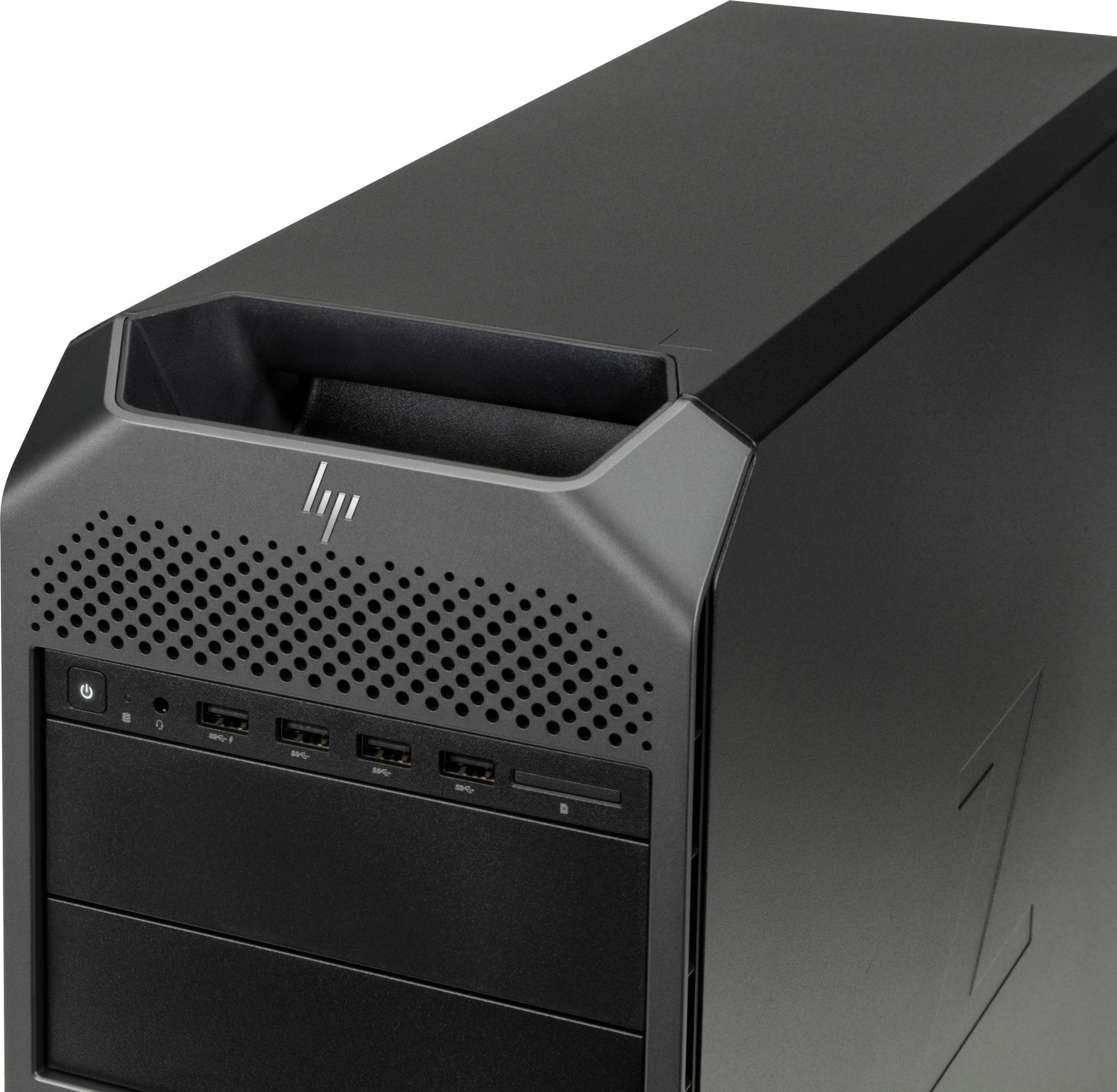

HP's best-selling performance workstation
Perfect for engineering, visualization and Machine Learning, HP's most popular workstation delivers disruptive performance for a wide spectrum of applications. With a choice of Intel® Xeon® or Core™ X processors, and support for dual extreme graphics, you get all you need, nothing more.
Warranty: 3 year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
| Processor |
|---|
| Memory bandwidth supported by processor (max) |
93.85 GB/s |
| Memory clock speeds supported by processor |
2933 MHz |
| Memory types supported by processor |
DDR4-SDRAM |
| Maximum internal memory supported by processor |
1.02 TB |
| Number of processors installed |
1 |
| PCI Express slots version |
3.0 |
| Maximum number of PCI Express lanes |
48 |
| PCI Express configurations |
1x4, 1x8, 1x16 |
| Tcase |
59 °C |
| Processor codename |
Cascade Lake |
| Thermal Design Power (TDP) |
155 W |
| Processor lithography |
14 nm |
| Processor operating modes |
64-bit |
| Processor threads |
16 |
| Processor cache type |
L3 |
| Processor cache |
16.5 MB |
| Processor socket |
LGA 2066 (Socket R4) |
| Processor boost frequency |
4.5 GHz |
| Processor frequency |
3.9 GHz |
| Processor cores |
8 |
| Processor model |
W-2245 |
| Processor family |
Intel Xeon W |
| Processor manufacturer |
Intel |
| Memory |
|---|
| ECC |
Yes |
| Memory clock speed |
2933 MHz |
| Memory slots |
2x DIMM |
| Memory layout (slots x size) |
2 x 16 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
256 GB |
| Internal memory |
32 GB |
| Storage |
|---|
| SSD form factor |
M.2 |
| SSD interface |
NVMe |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| SSD memory type |
TLC |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Optical drive type |
DVD±RW |
| Total storage capacity |
512 GB |
| Card reader integrated |
Yes |
| Graphics |
|---|
| On-board graphics card model |
Not available |
| Discrete graphics card memory |
8 GB |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card model |
NVIDIA Quadro RTX 4000 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
No |
| Discrete graphics card |
Yes |
| Network |
|---|
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| Line-out |
Yes |
| Line-in |
Yes |
| Headphone outputs |
1 |
| Microphone in |
No |
| Ethernet LAN (RJ-45) ports |
2 |
| PS/2 ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
12 |
| Expansion slots |
|---|
| PCI Express x16 slots |
2 |
| PCI Express x8 slots |
1 |
| PCI Express x4 slots |
2 |
| Design |
|---|
| Country of origin |
China |
| Product colour |
Black |
| Number of 5.25" bays |
2 |
| Number of 3.5" bays |
2 |
| Placement supported |
Vertical |
| Chassis type |
Tower |
| Performance |
|---|
| Product type |
Workstation |
| Software |
|---|
| Drivers included |
Yes |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro for Workstations |
| Processor special features |
|---|
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Physical Address Extension (PAE) |
Yes |
| Physical Address Extension (PAE) |
46 bit |
| Intel 64 |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Embedded options available |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel TSX-NI |
Yes |
| Idle States |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Secure Key |
Yes |
| Intel® OS Guard |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Execute Disable Bit |
Yes |
| Intel Flex Memory Access |
No |
| Intel Demand Based Switching |
Yes |
| Processor package size |
45 x 52.5 mm |
| Supported instruction sets |
SSE4.2, AVX, AVX 2.0, AVX-512 |
| Scalability |
1S |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Processor ARK ID |
198609 |
| Intel Software Guard Extensions (Intel SGX) |
No |
| Brand-specific features |
|---|
| HP segment |
Business |
| HP Security tools |
HP kabelslotkit met sleutel; HP Secure Erase; HP Sure Start Gen3; HP Device Access Manager; HP Sure Click; HP BIOSphere Gen3; HP Client Security Manager Gen 3; HP MIK/SCCM Gen2 |
| Power |
|---|
| Power supply |
1000 W |
| Sustainability |
|---|
| Sustainable technologies and materials |
Low halogen |
| Weight & dimensions |
|---|
| Weight |
10.2 kg |
| Height |
445 mm |
| Depth |
169 mm |
| Width |
386 mm |
| Packaging content |
|---|
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Display included |
No |
| Other features |
|---|
| Keyboard type |
USB |
| Graphics card interface |
PCIe x16 |
| Harmonized System (HS) code |
84715000 |
| Optical drives quantity |
1 |
