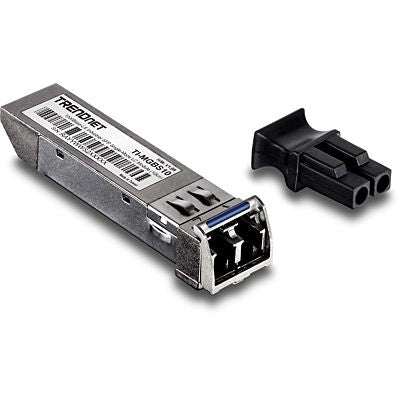

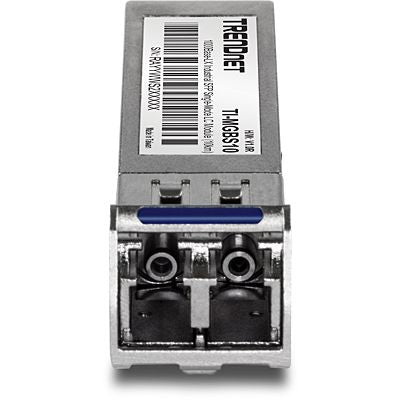

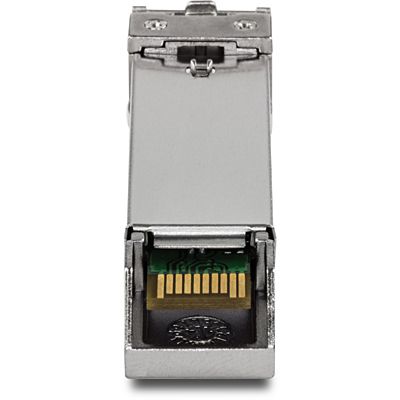

1000Base-LX Industrial SFP Single-Mode LC Module, 10km
Trendnet TI-MGBS10. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Grey, Housing material: Metal, Certification: MSA FCC CE. Power consumption (typical): 1 W. Width: 13 mm, Depth: 57 mm, Height: 8.5 mm. Number of products included: 1 pc(s)
The 1000Base-LX Industrial SFP Single-Mode LC Module, model TI-MGBS10, is designed to operate within a wide temperature range and is well suited for industrial environments. This SFP module works with standard SFP slots found on industrial switches and fiber converters. The TI-MGBS10 is compatible with Duplex LC fiber connector types and supports gigabit single-mode fiber connections at distances of up to 10 kilometers (6.2 miles).
Warranty: 3 Years
| Performance |
|---|
| Harmonized System (HS) code |
85369010 |
| Fiber ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Duplex system |
Full |
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Wavelength |
1310 nm |
| Maximum transfer distance |
10000 m |
| SFP transceiver standard |
LX |
| Fiber optic connector |
LC |
| Single-mode fiber (SMF) supported |
Y |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Certification |
MSAFCCCE |
| Hot-Plug support |
Y |
| Housing material |
Metal |
| Product colour |
Grey |
| Power |
|---|
| Power consumption (typical) |
1 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 85 °C |
| Weight & dimensions |
|---|
| Weight |
19 g |
| Height |
8.5 mm |
| Depth |
57 mm |
| Width |
13 mm |
| Packaging data |
|---|
| Number of products included |
1 pc(s) |
| Other features |
|---|
| RX sensitivity |
-23 dB |
